Realization of the printed circuit

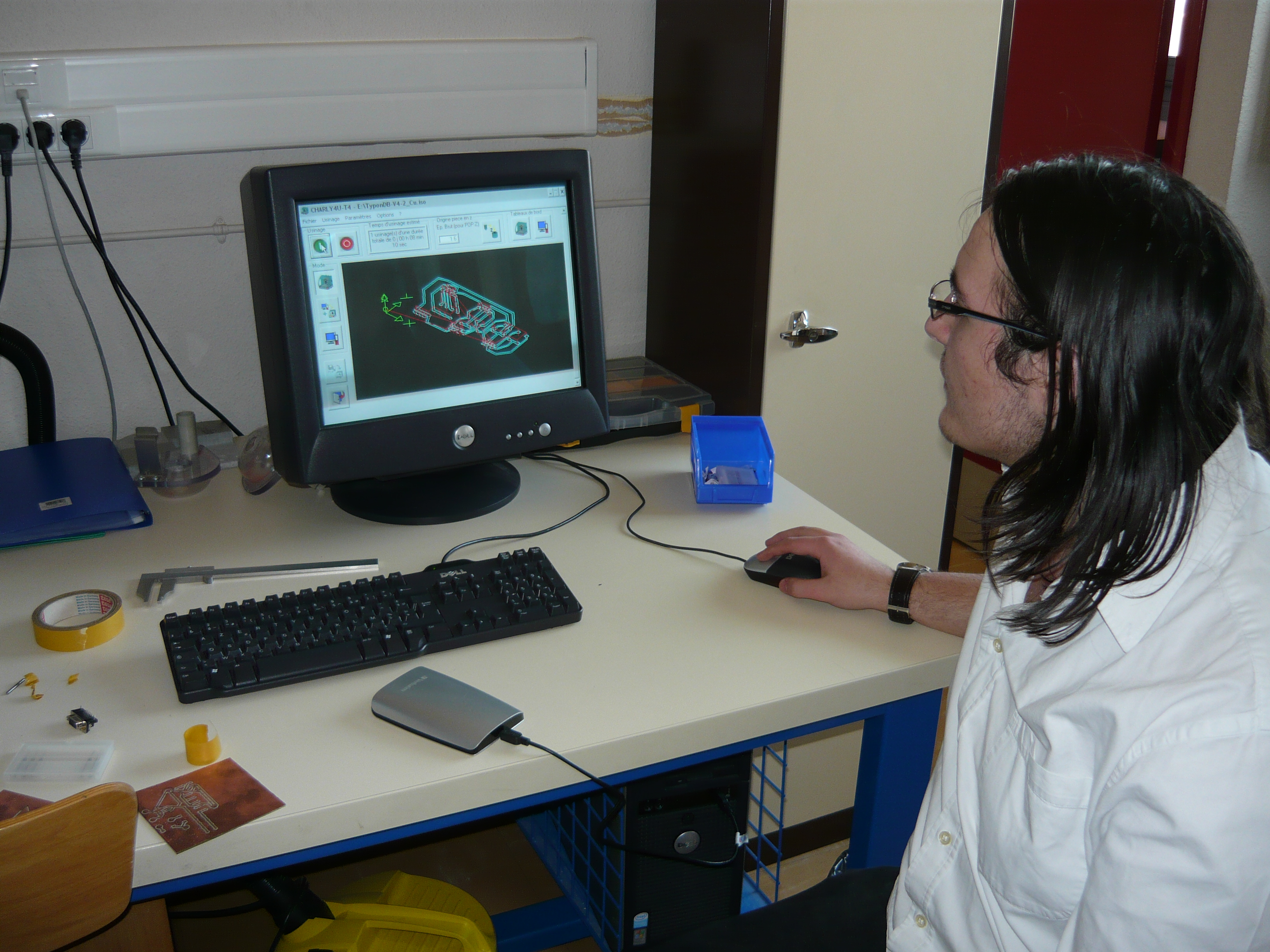

Paul has made ​​the circuit on software.

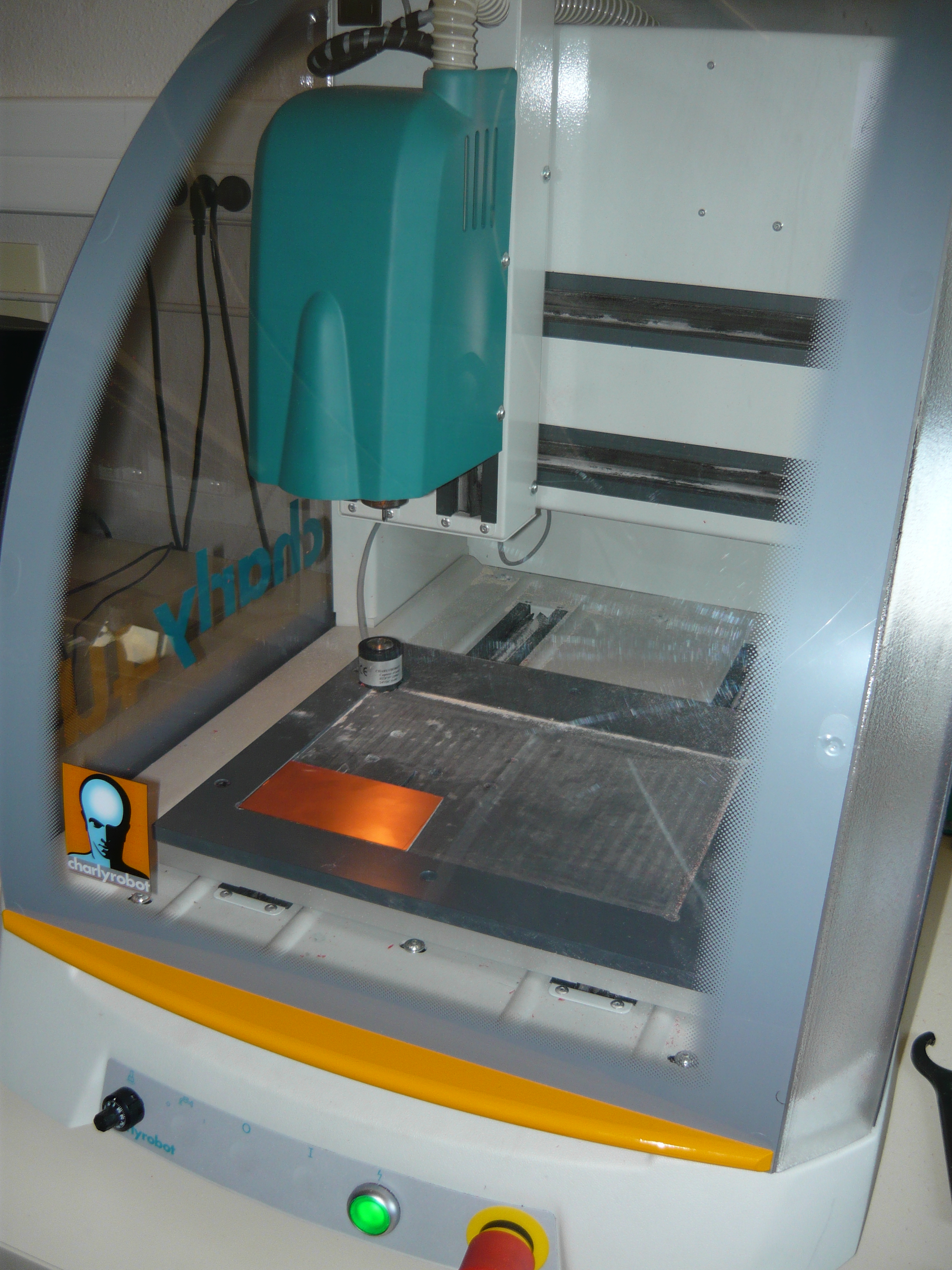

The software then provided information to Charly Robot, a machine that will reproducethe precise pattern done on computers.

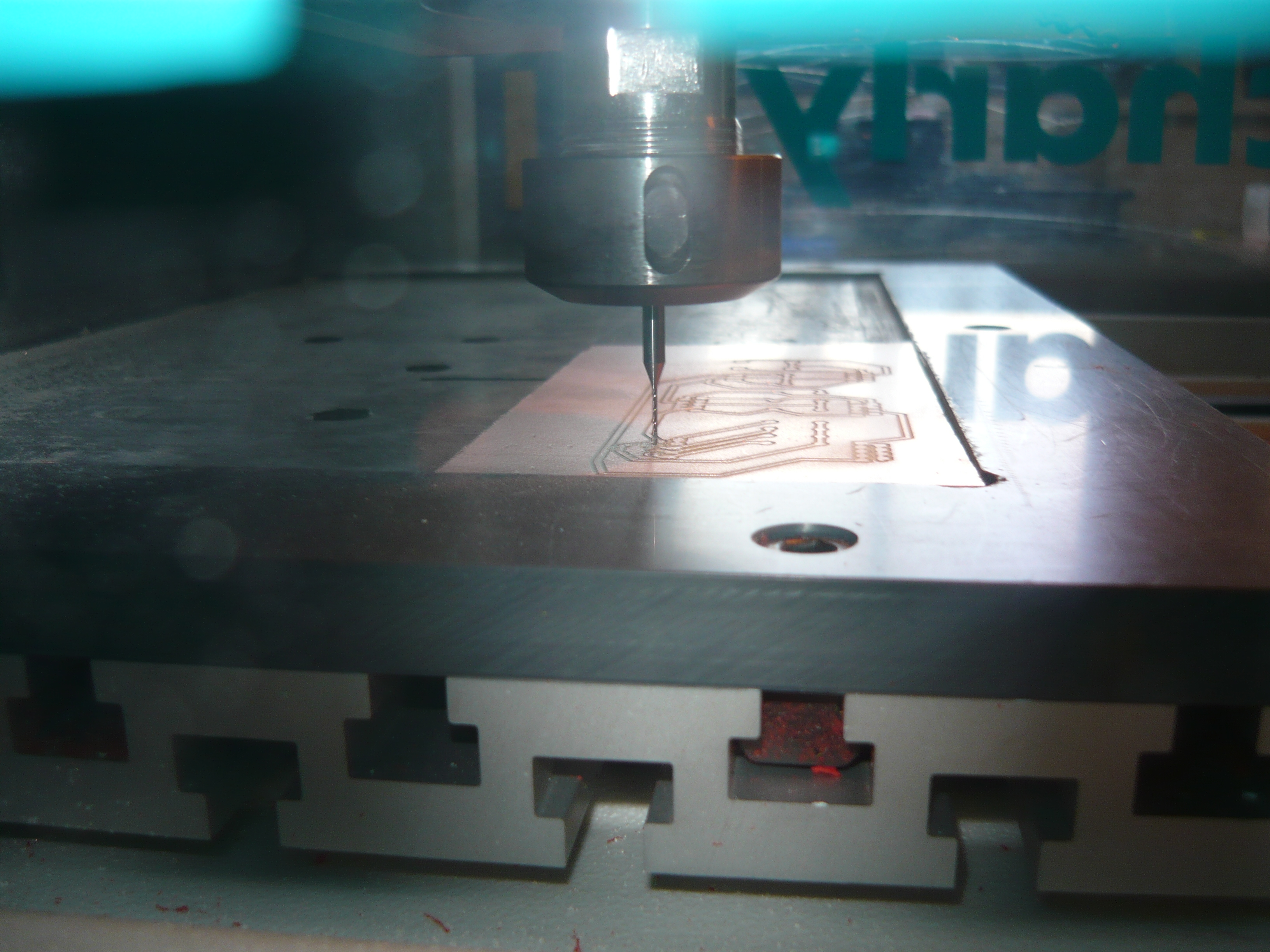

The robot then performs the engraving "digging"into the copper plate.

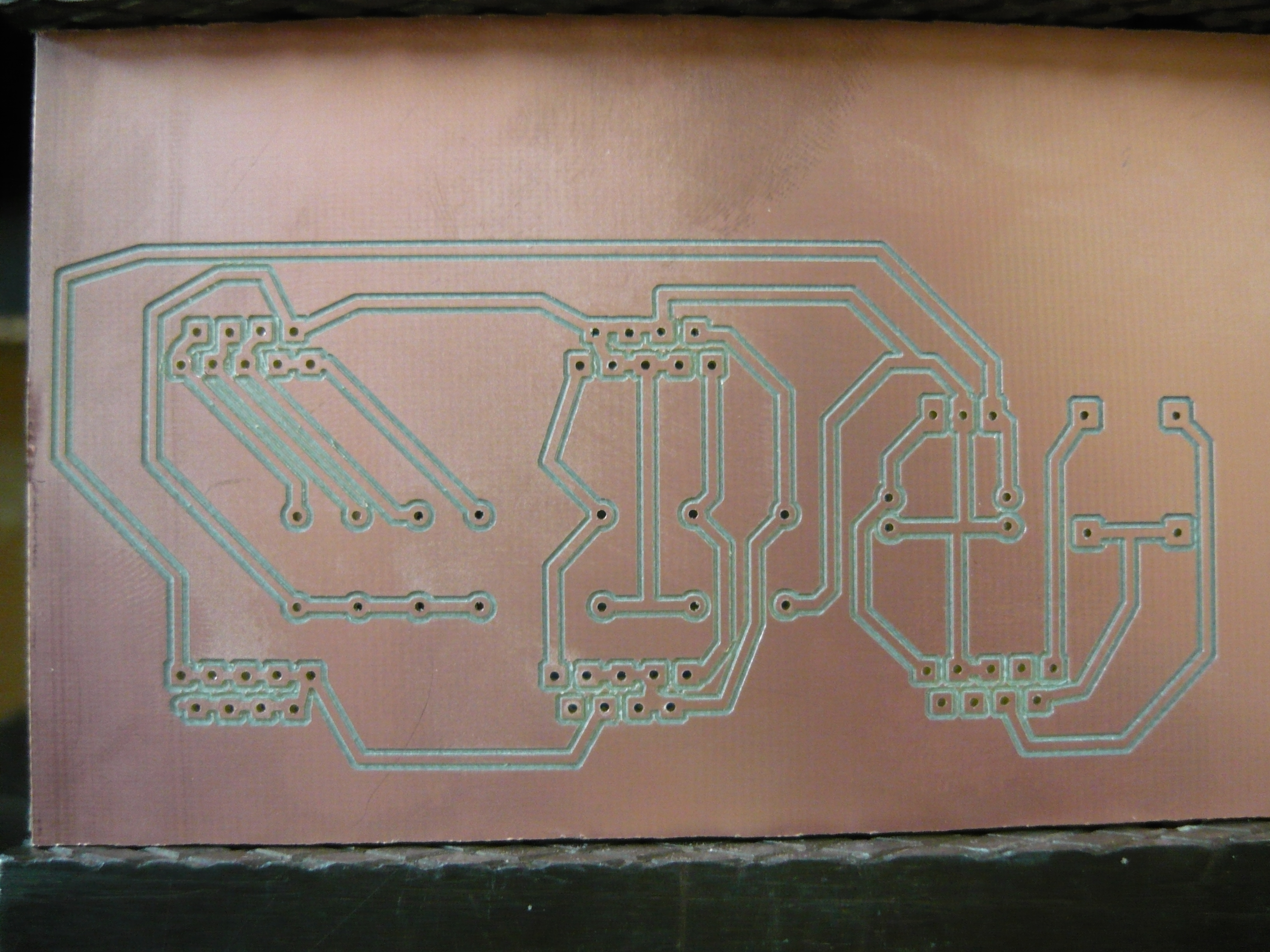

The circuit obtained is the following.









Jean Michel then verifies the absence of short circuits.
